How it's built
The four systems that do the actual work. Pick one to see how it operates.
Tank & piston
- Volume
- 12.8 m³ water and/or sludge, approved for 98% vacuum with 0.5 bar of positive pressure.
- Moveable piston
- Manual and automatic controls, three locking positions between the water and sludge compartments, manhole built into the piston.
- Air-gasket
- A pressurised rubber-tyre-style gasket stops cross-contamination between compartments and moves automatically with the piston.
- Back door
- Fully hydraulic, opens completely. Hydraulic double overcenter valves fitted as standard.
- Ball valves
- 1 x 4" top suction and 1 x 6" bottom suction, both pneumatically operated, with a stone/debris trap on the top inlet.
- Slops tray & material
- 304 stainless steel tray; tank built from 8 mm P265GH boiler plate steel, rated for 20+ years.
Jetting & vacuum pumps

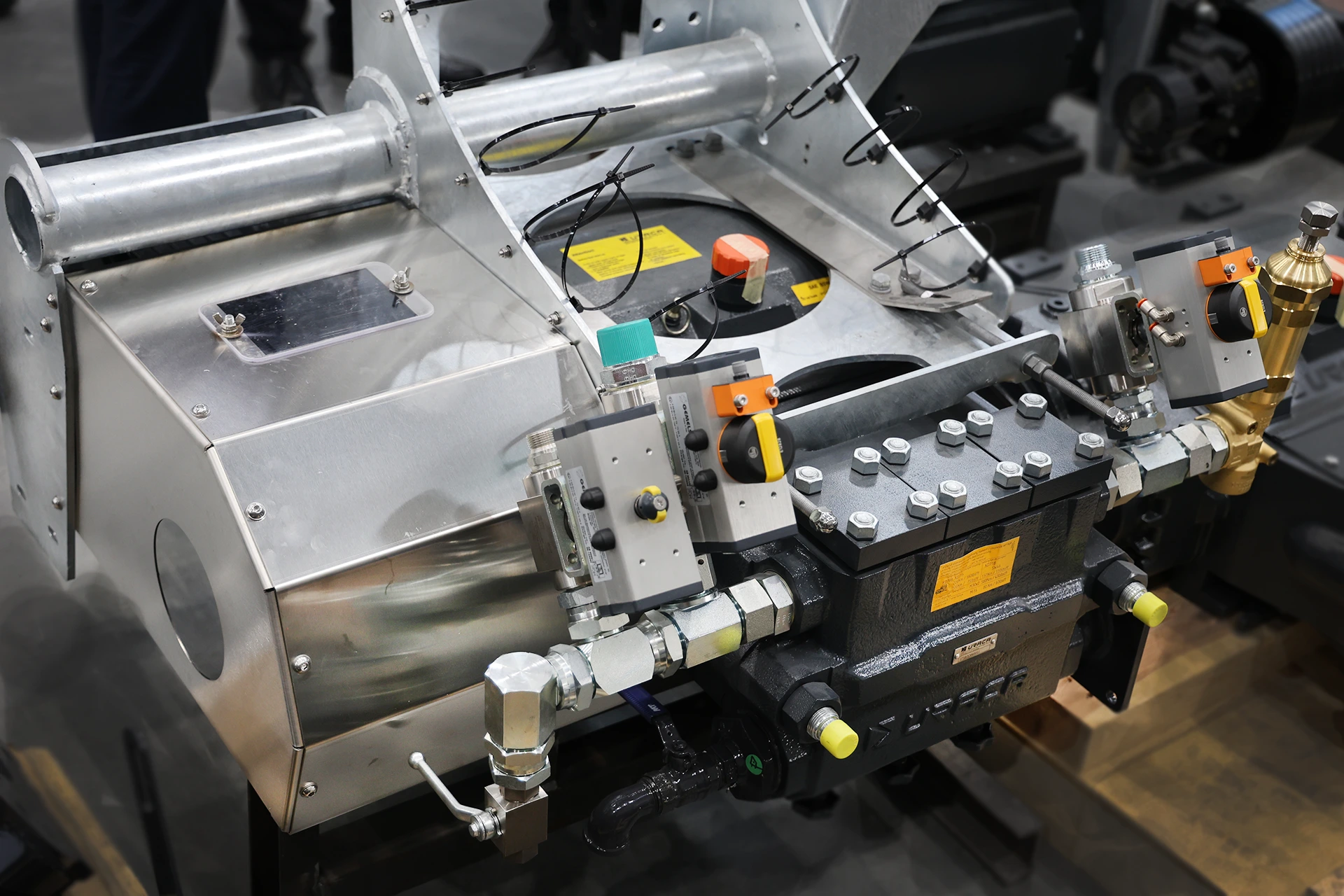

High-pressure jetting — URACA KD718G
- Capacity
- 333 l/min at 170 bar (103 kW)
- Hose reels
- 200 m x 1" thermoplastic, plus 50 m x ¾" and 60 m x ½" black rubber
- Protection
- Automatic shut-off at minimum tank water level

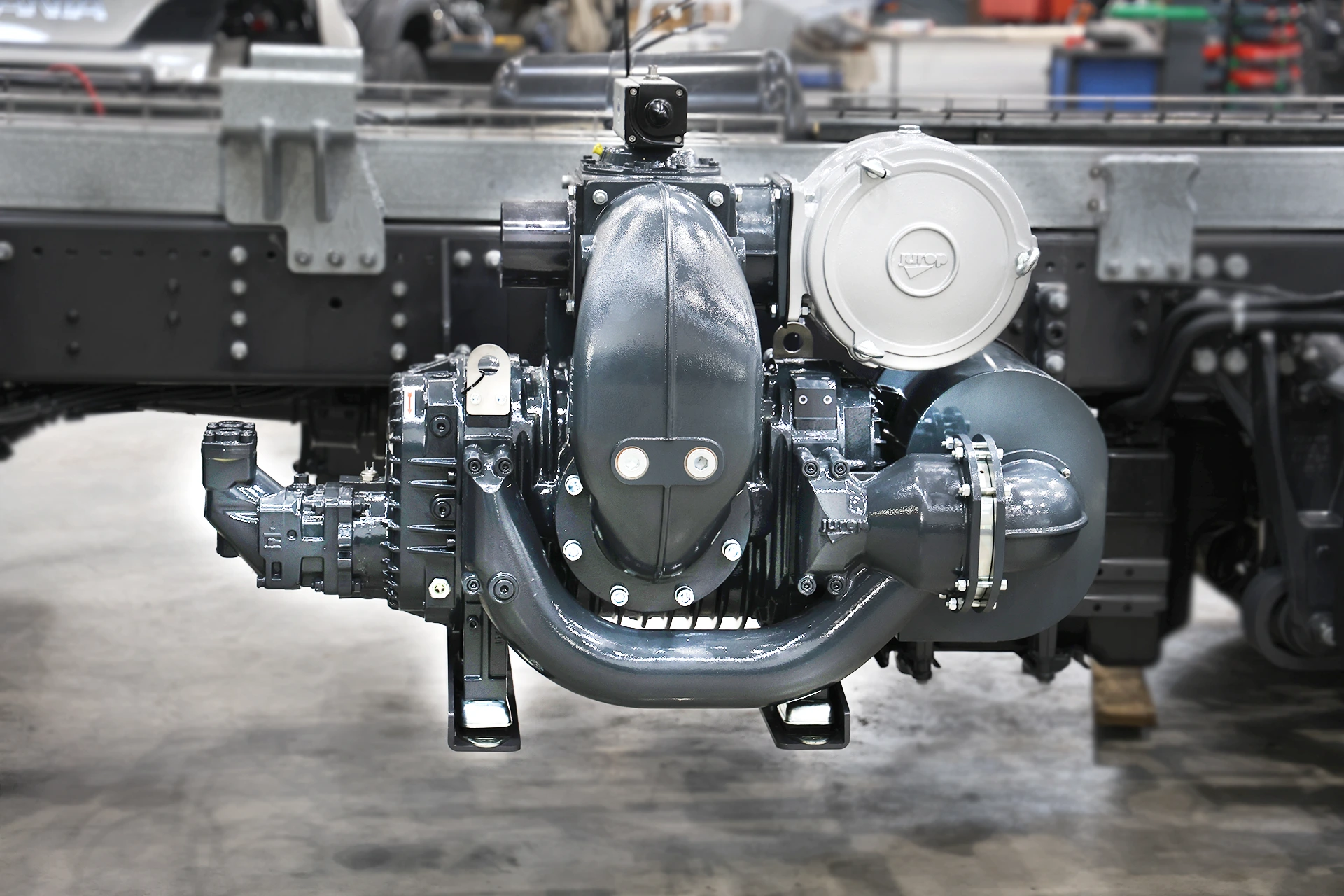

Vacuum — Jurop PVT 400
- Capacity
- 43,300 l/min at 93% vacuum (100 kW), max 98%
- Type
- Oil-free, environmentally friendly
- Protection
- Two float valves plus an in-line filter, 4"/5" piping
Cassette & hose arm

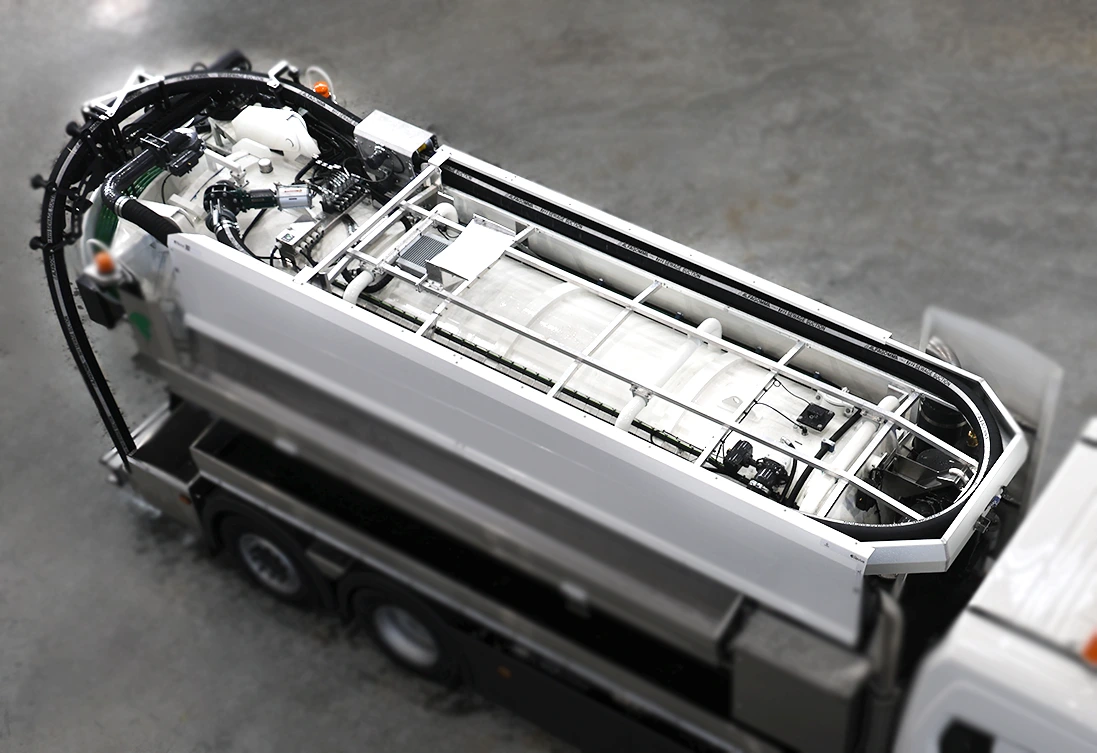

- Cassette tray
- Anodized aluminium, hydraulic roller system, takes 4" or 5" hose with smooth U-curve extraction.
- Hose depth
- Lowers to 10 m, couplings on both ends for extensions.
- Telescopic arm
- 4"–6" hose, fully hydraulic, local or remote control, independent of the main drum.
- Reach
- 3 m extension, 2 m vertical lift, 220° operating zone.
Control & drive

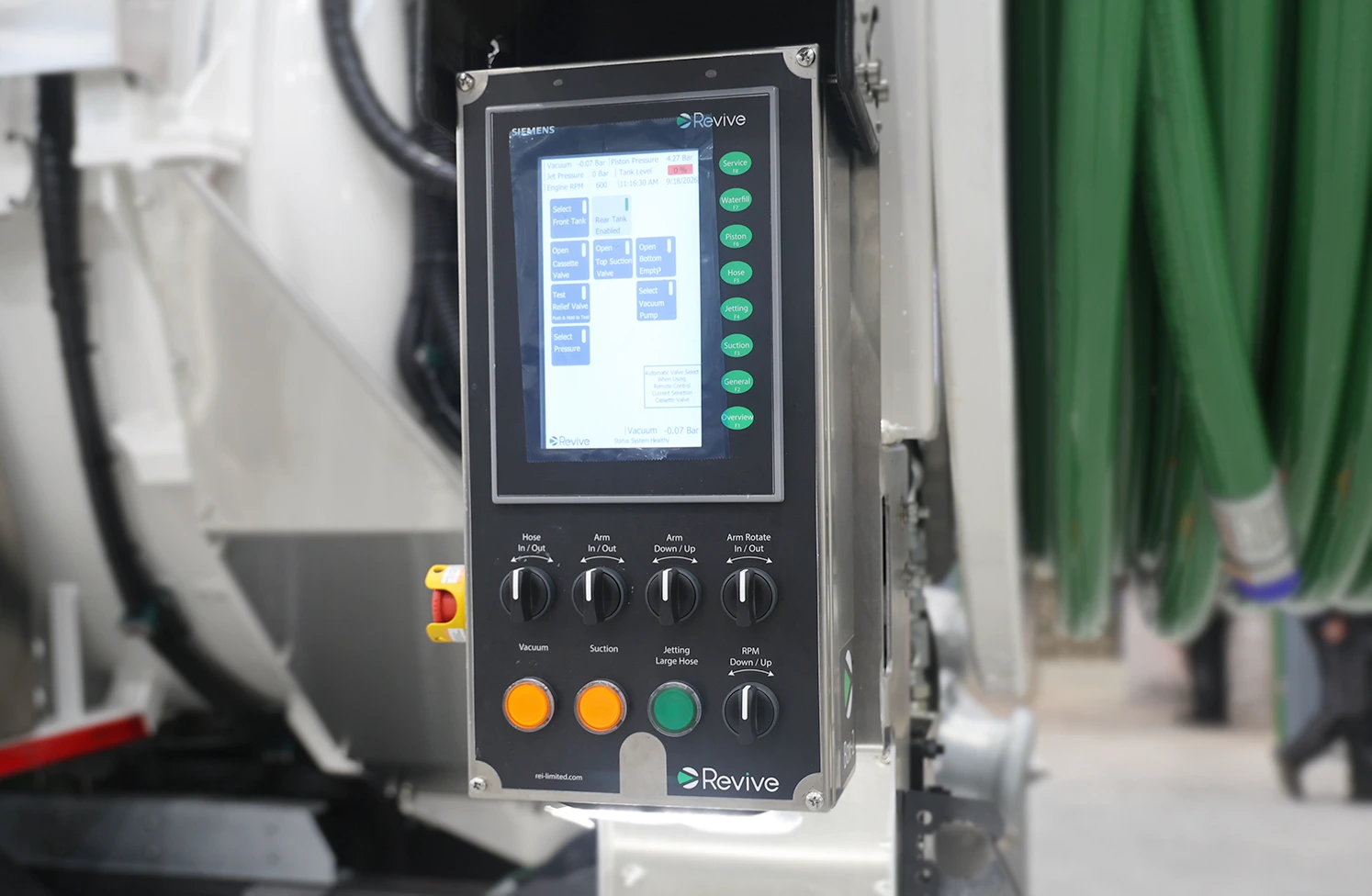

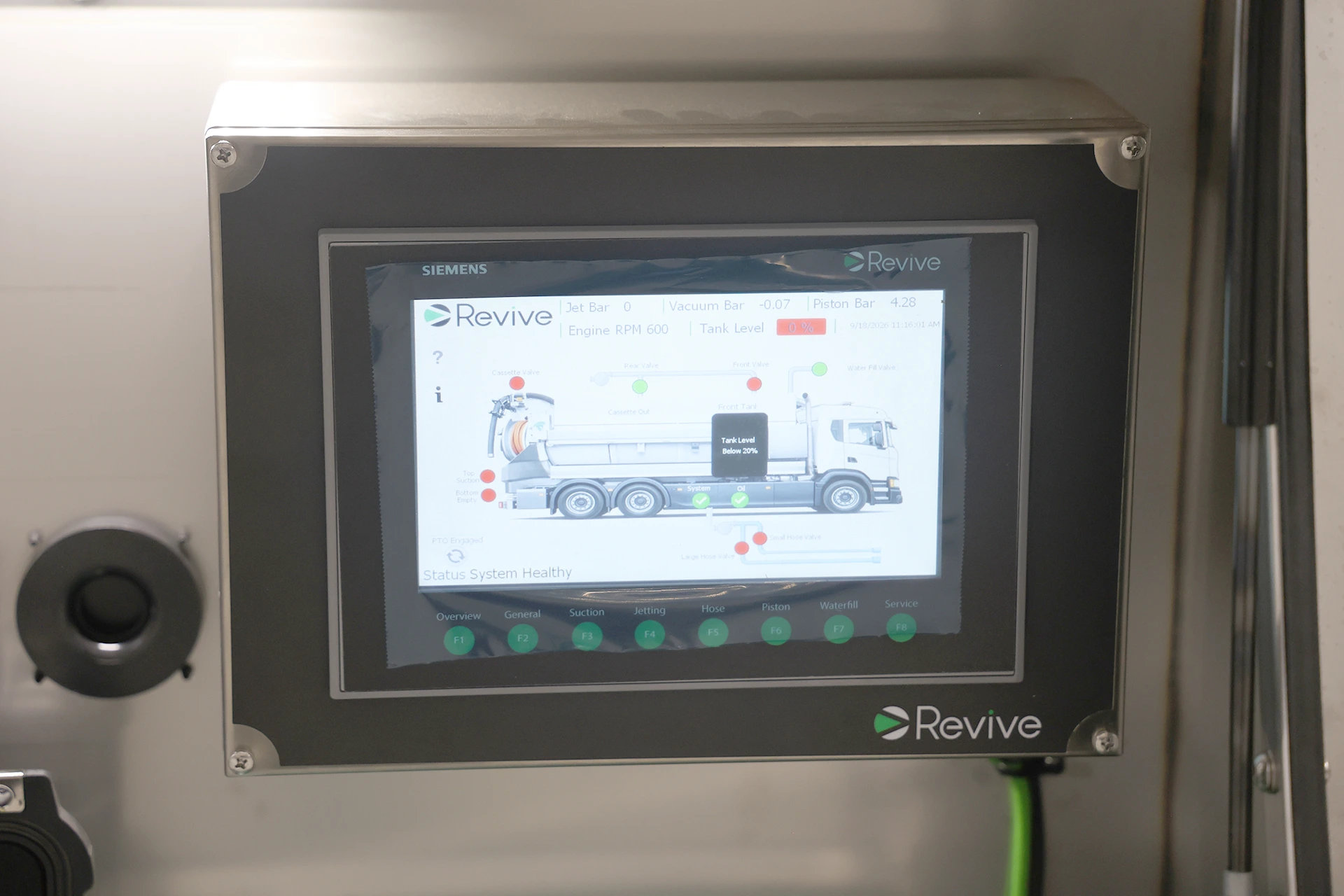

Control panels
- PLC
- Siemens S7-1200 PROFINET, sealed stainless enclosures
- Layout
- Rear and kerb-side panels, buttons in local language
- Remote
- 16-function system, individually paired to each vehicle
Transmission
- PTO system
- Three-shaft: engine PTO drives vacuum, gearbox PTO (x2) drives auxiliary hydraulics and jetting
- Cooling
- Extra hydraulic cooling piped through the tank for long shifts
Fit-out & finish
Storage, lighting and paintwork, standard on every unit.

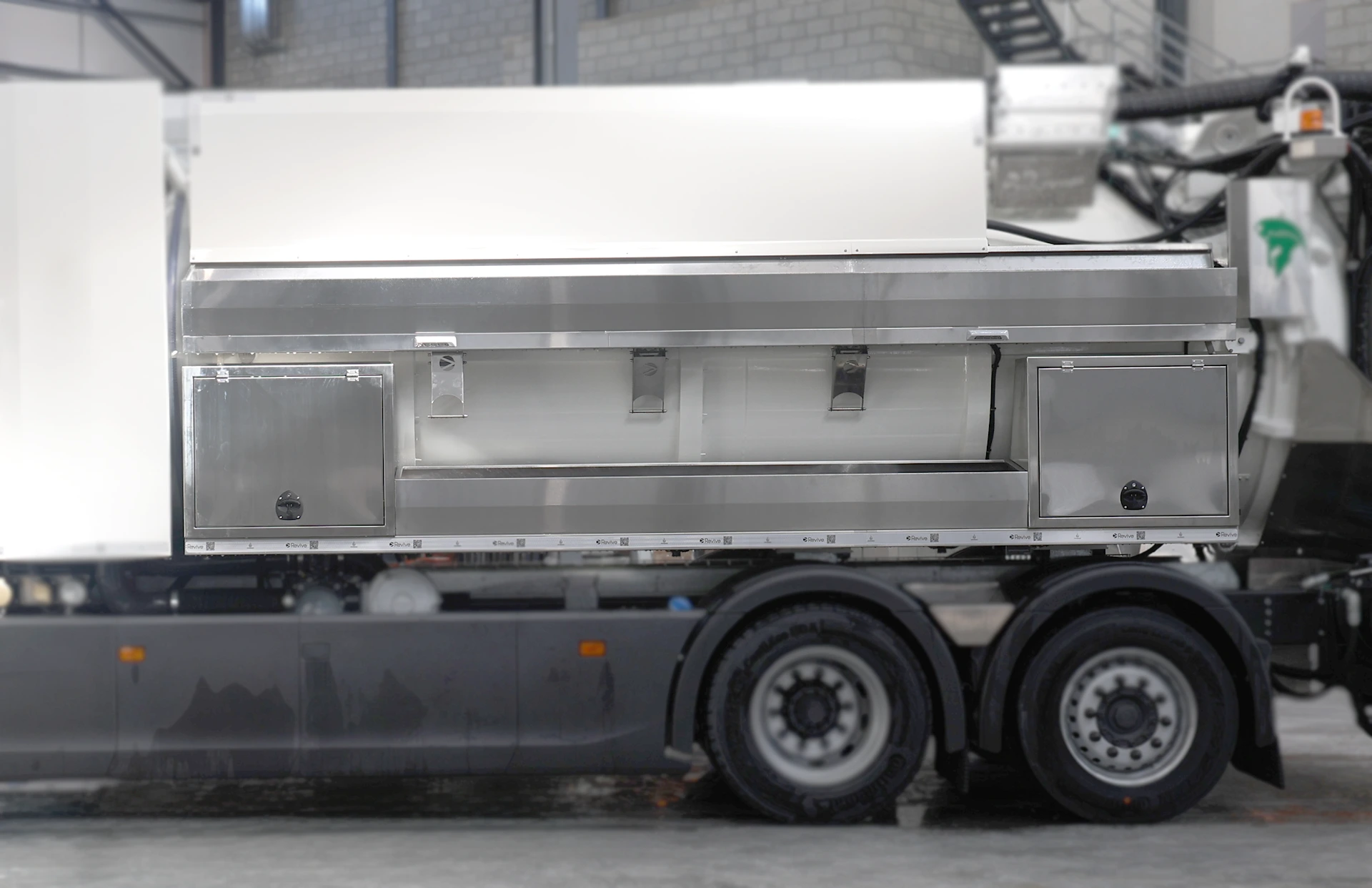

Cabinets
- Hot hand wash facility
- 2 x lockable aluminium double cabinets, kerb-side rear
- Extra cabinets available on request
Shelves
- Hose shelf, kerb-side
- Tool shelf, between the two lockable cabinets
- Hose shelf, road-side, plus a long lower hose shelf
- Cone holder for couplings, cones and trash

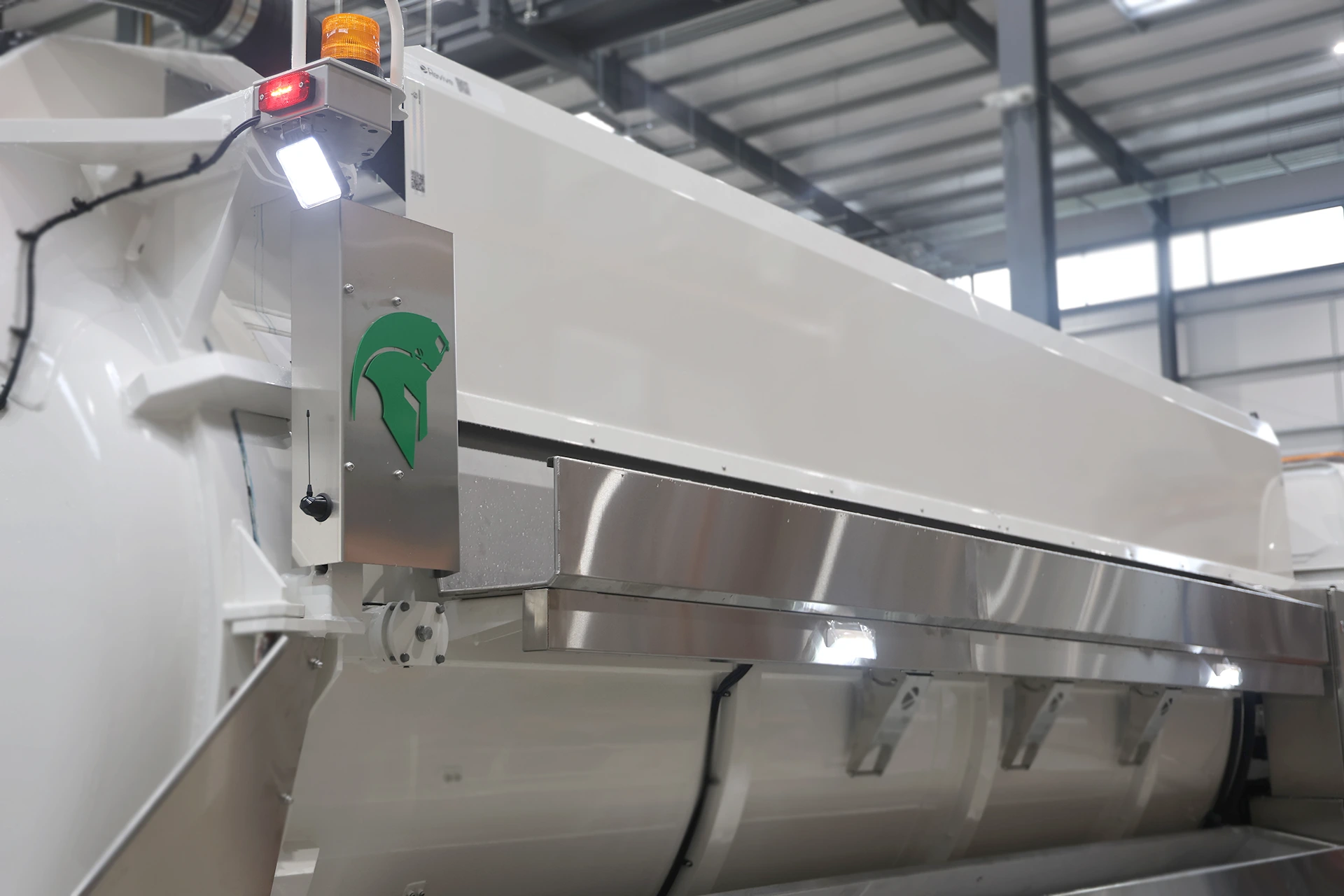

Lighting
- 6 x LED work lamps
- 4 x beacon lights
- 4 x blitz lights
- 6 x LED sidelights with built-in reflectors
Cabin & tank finish
- Scania Ivory White — cabin and tank
- High-spec PU paint on cabinets and shelving

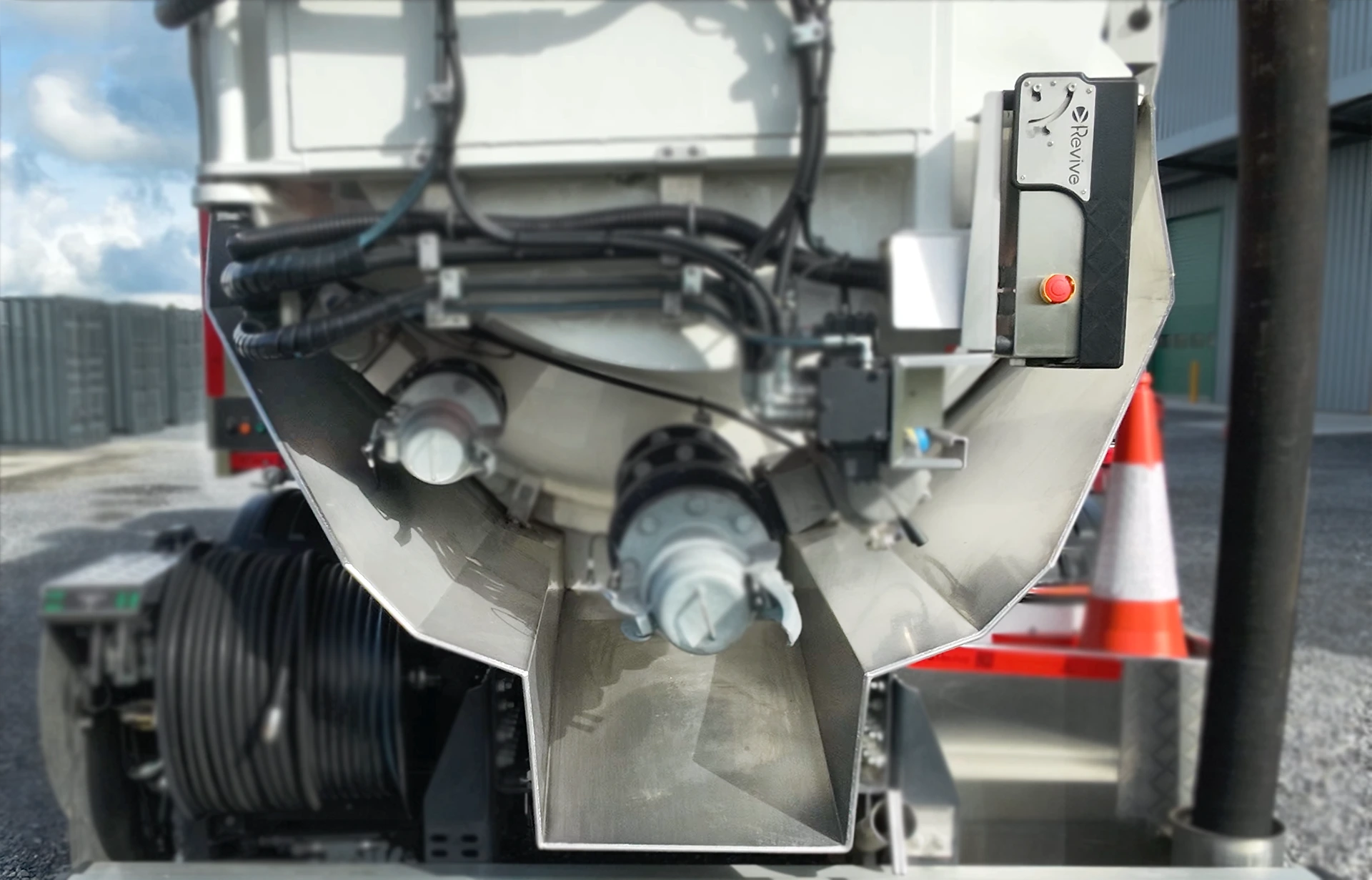

Slops tray
- 304 stainless steel, polished finish
- Full-width, keeps wash-out water off the chassis
Mudguards & signage
- 2 x sets of plastic Scania mudguards
- Painted aluminium sign plates on each side of the tank
Nozzle set

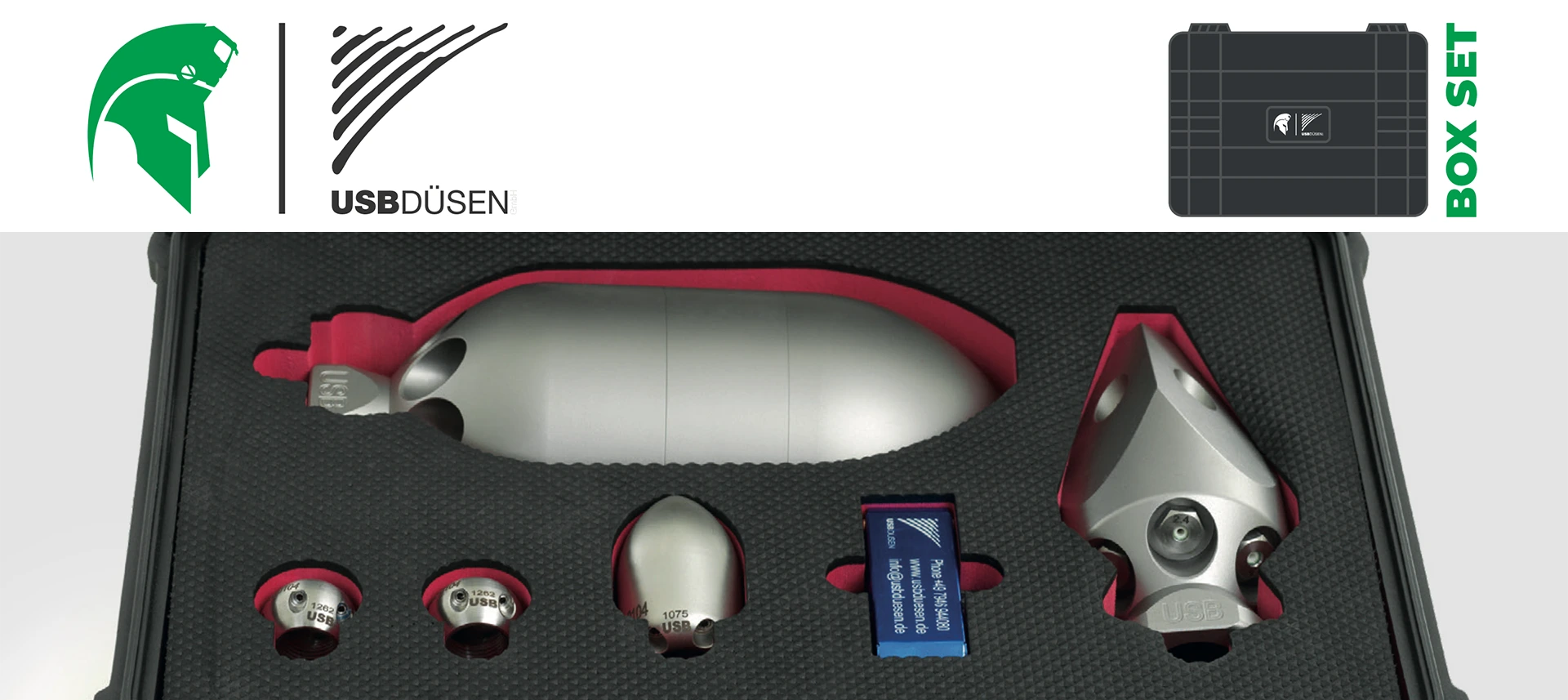

Five heads included as standard in the USB nozzle box.

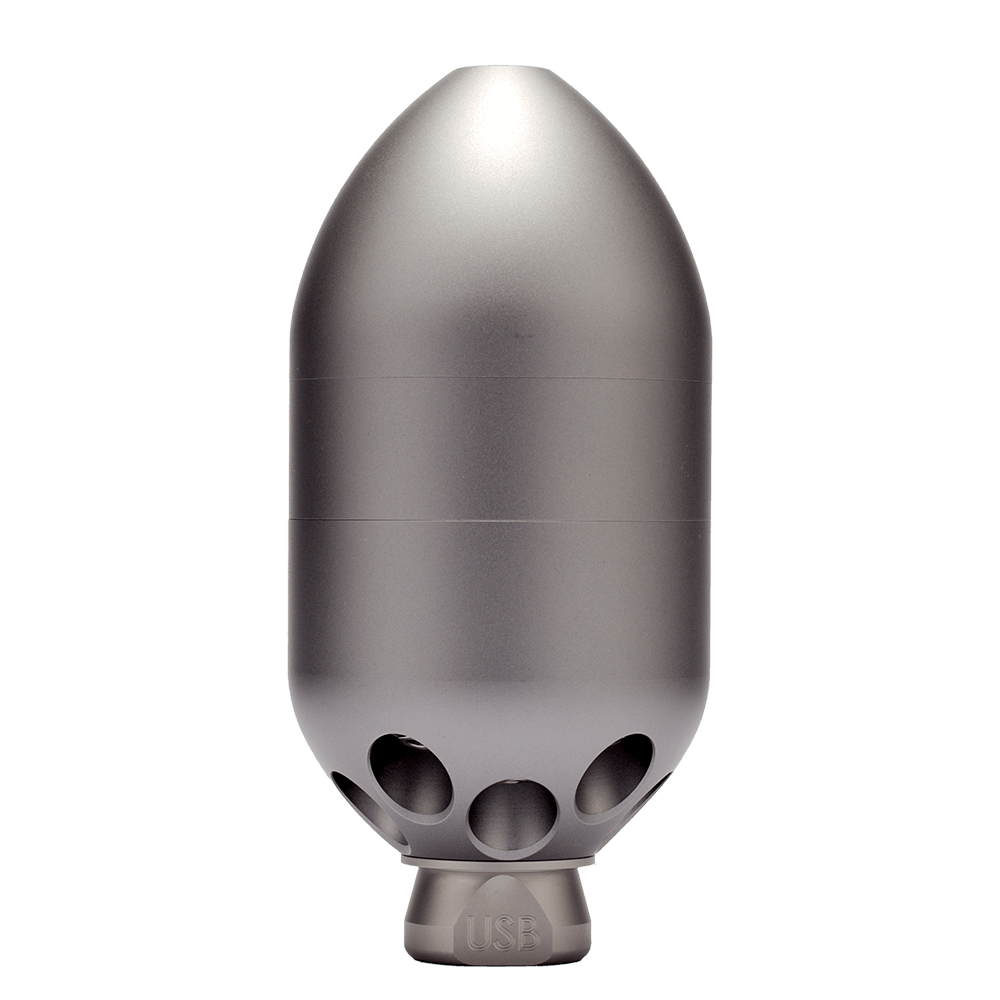

1Combinator 3D
1186K · 8"–32" pipe · G1"
Best combined traction and cleaning.

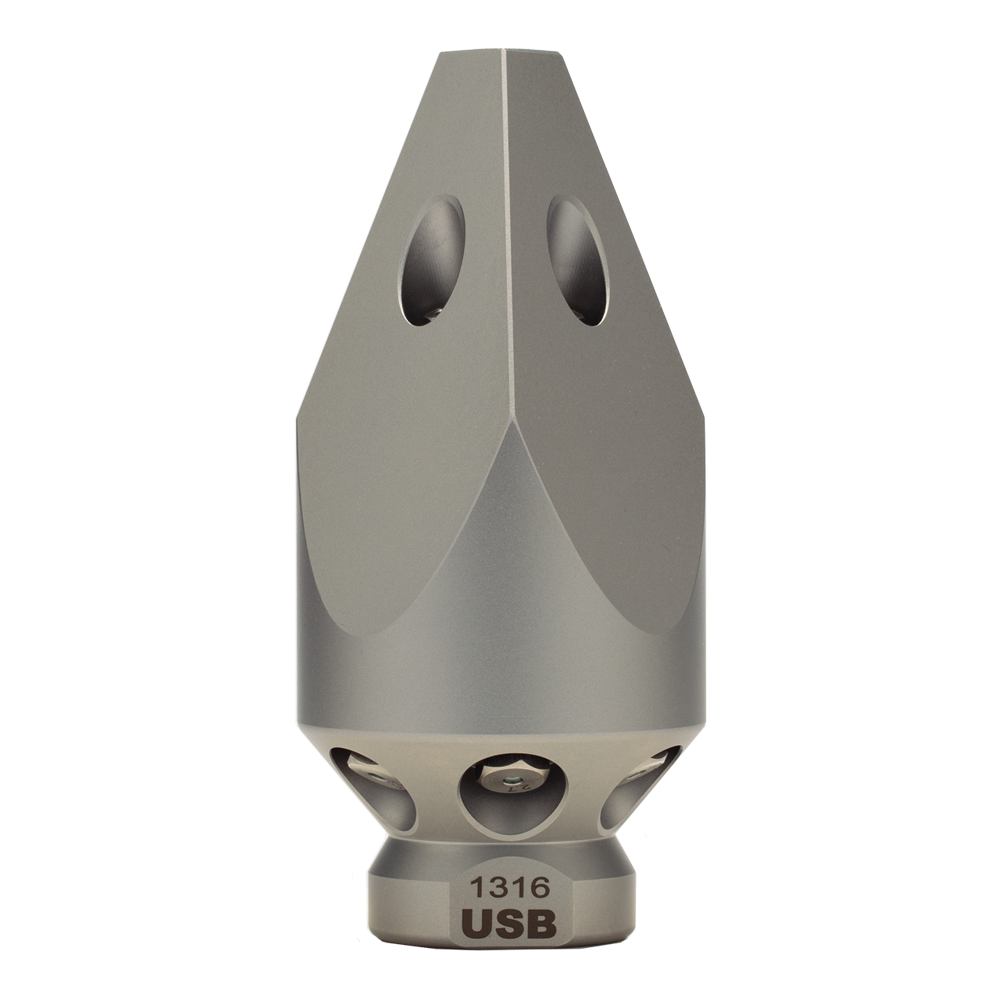

2Quattro
1317K · 6"–20" pipe · G1"
6/5 inserts for powerful penetration.

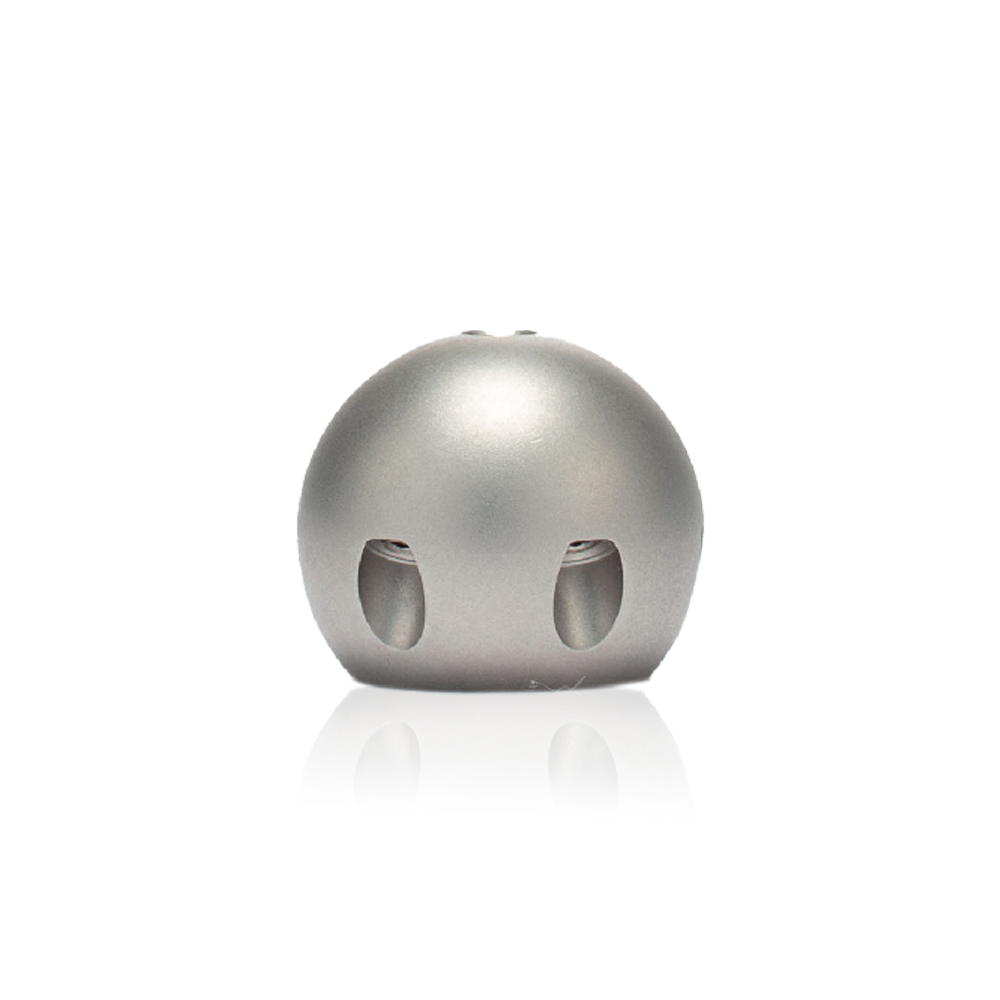

3Factory ball
1262 · <6" pipe · G½"
6 inserts, forward-facing jet.
4Factory ball
1262 · <6" pipe · G½"
6 inserts, no forward jet.

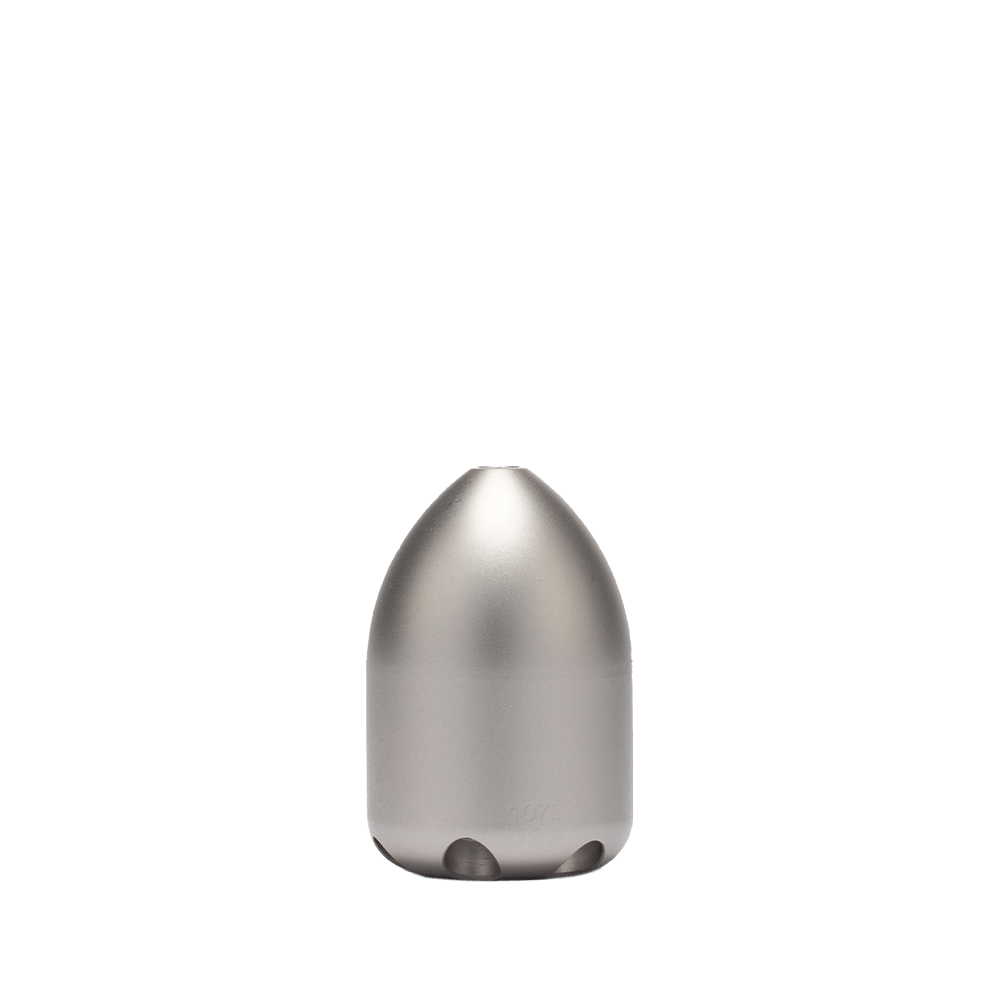

5Cleaning 3D
1075 · <8" pipe · G½"
6 inserts for powerful cleaning.
Additional extras
Chargeable options, ask for pricing.

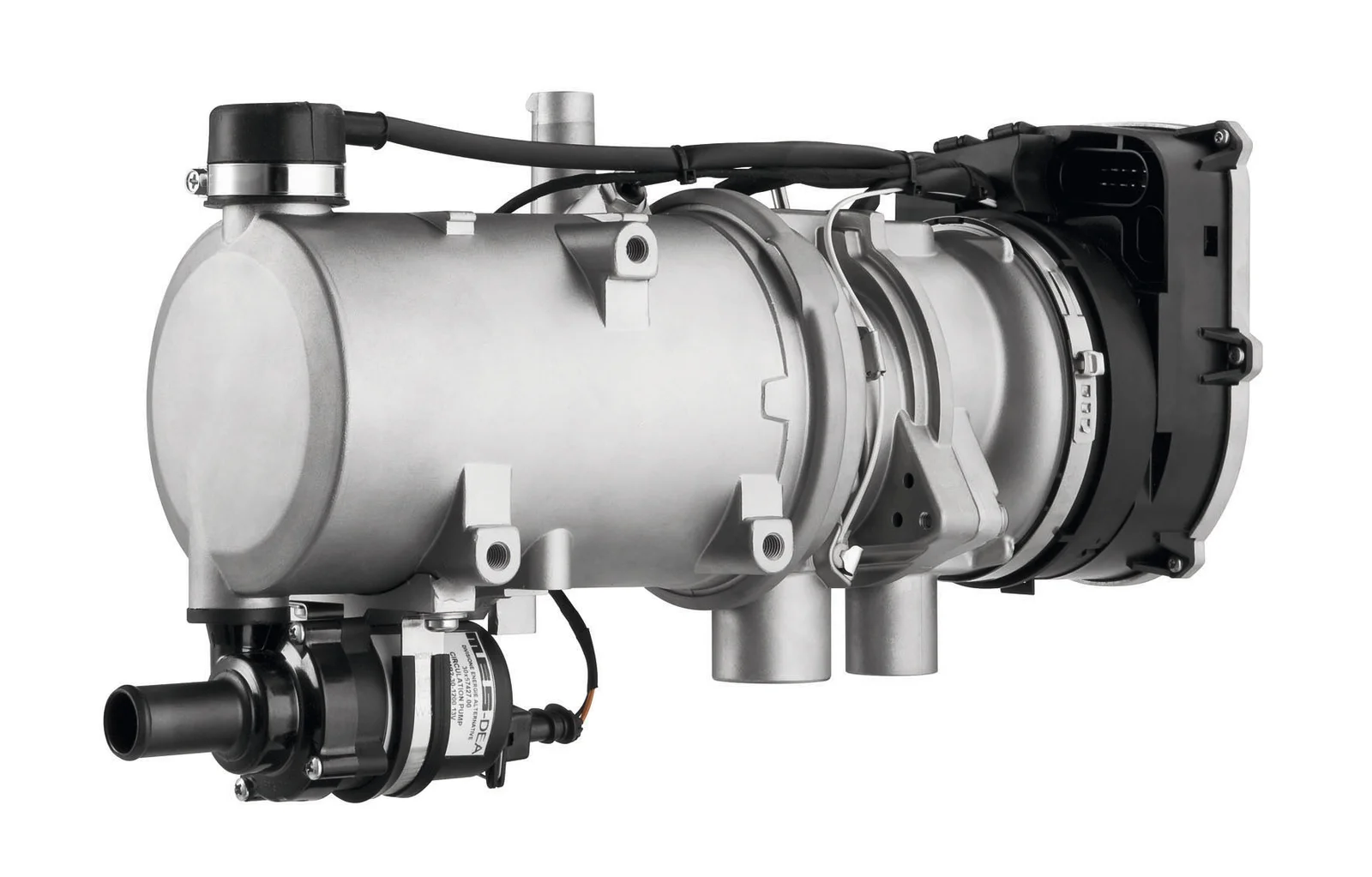

Water heater
Webasto Thermo Pro 90 diesel heater, 9 kW, keeps the jetting circulation from freezing.
chargeableCirculation pump

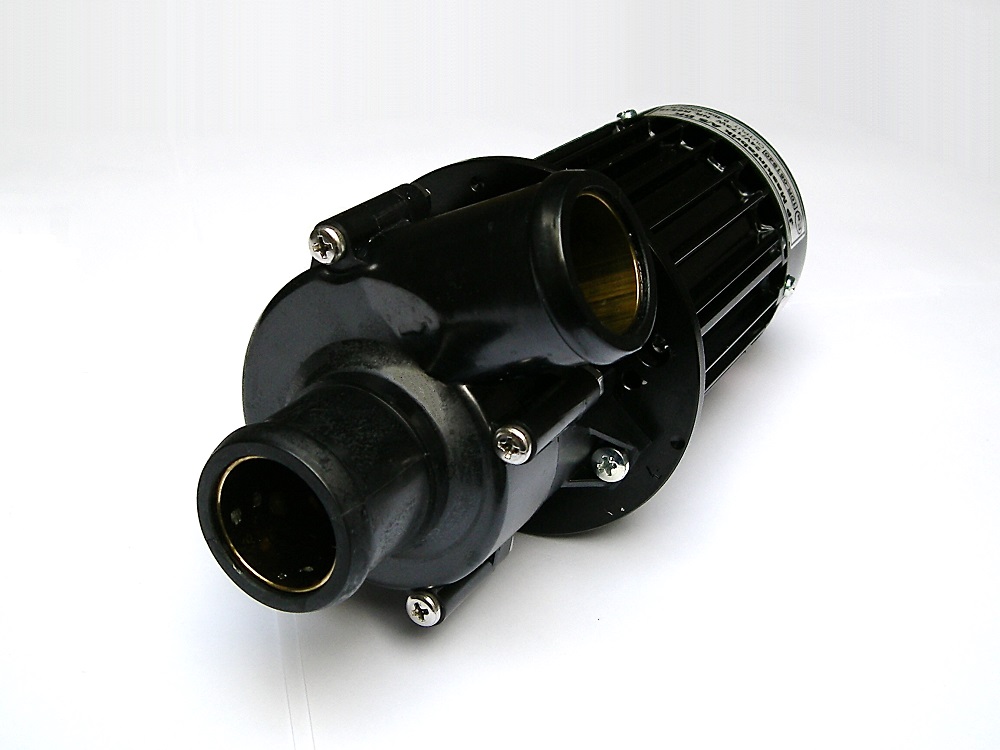

Strocco high-flow 24V pump, 7,000 l/h at 0.4 bar, pairs with the water heater.
chargeableVacuum pump boost
Shares flow from auxiliary hydraulics for max vacuum at lower engine revs — less noise, less fuel.

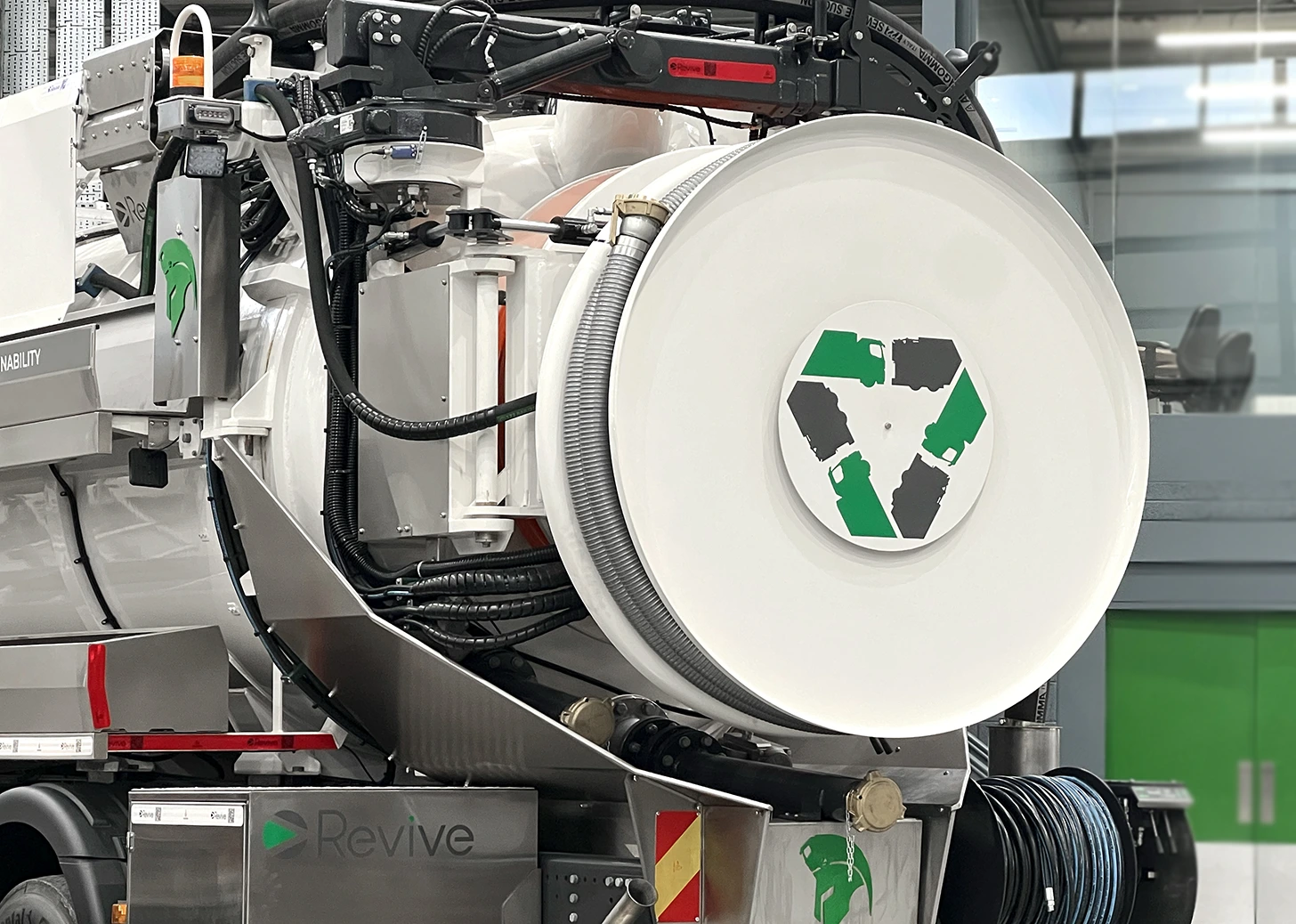

chargeableTransport reel
Extra hydraulic reel carrying up to 50 m of 4" cassette hose, integrated with the automation system.
chargeable

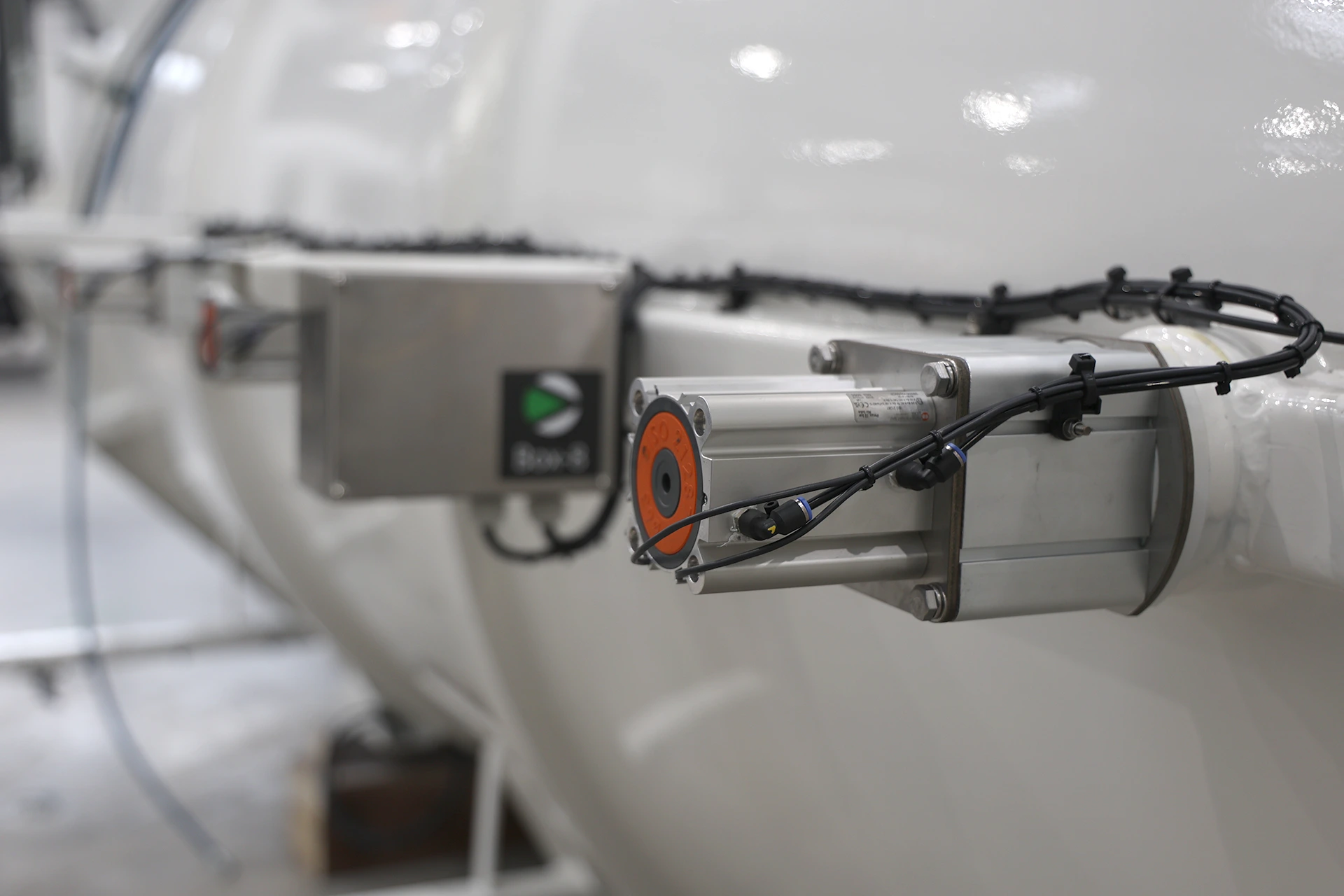

Automatic locking pins
Pneumatically operated, automated piston-position control for faster operation.

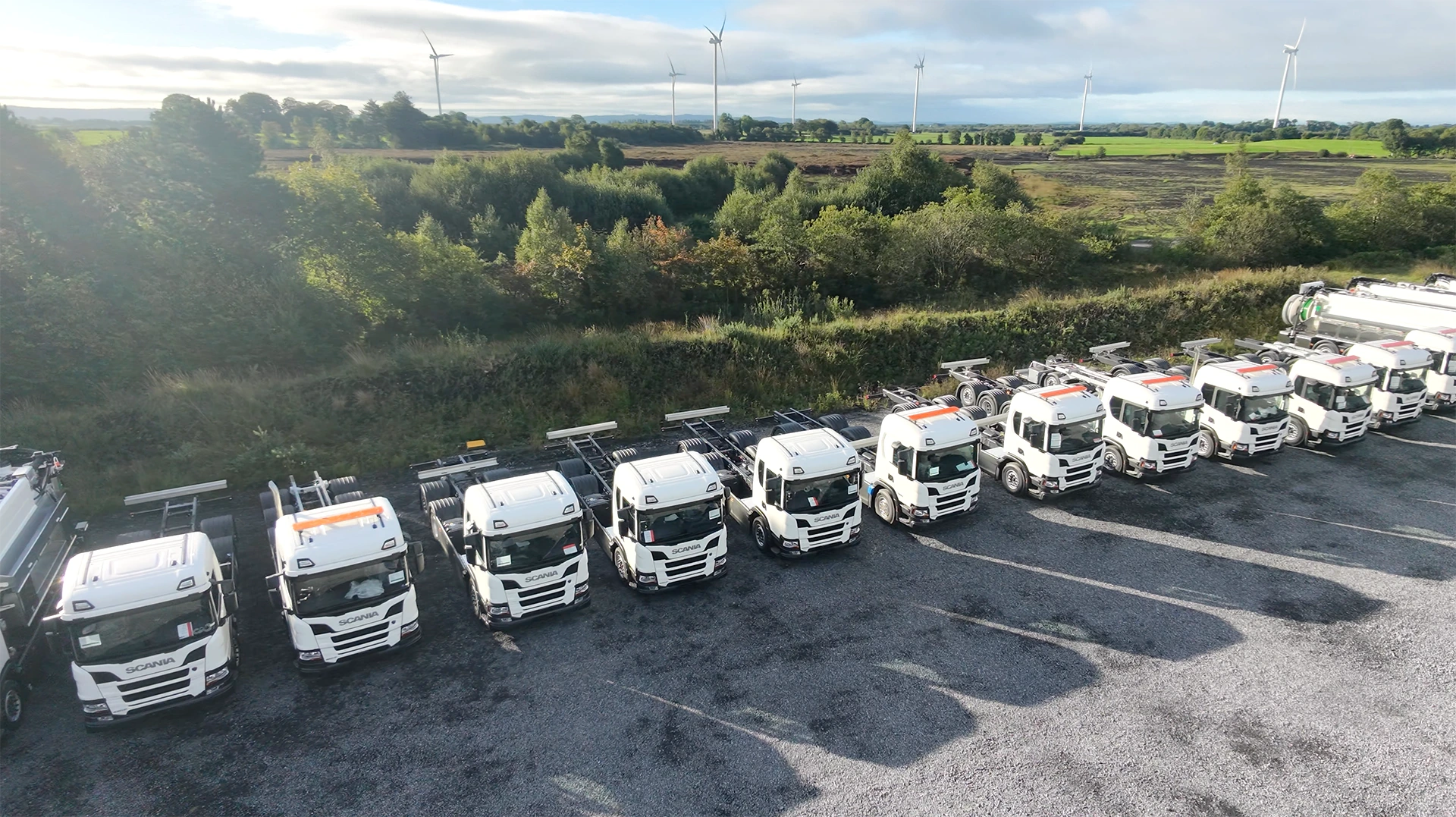

chargeableChassis options
Full chassis specification provided separately — see the attached Scania spec sheet.
see chassis sheetReady to spec a Warrior 12-3?
CE-marked, product liability insurance included, built at Revive Eco Park, Co. Tipperary.
